AccessView – Accounting
A comprehensive reporting and accounting platform providing transaction analytics, billing insights, reconciliation, and operational visibility across payment ecosystems.
Smart Reporting
Generate detailed reports instantly
Billing Analytics
Track revenue and charges
Data Visibility
Monitor transaction performance
Advanced Accounting and Transaction Analytics
PRODUCT OVERVIEW & DEMO
Secure, Scalable Payment Processing
AI-powered STC enables virtualized, high-performance transaction routing with
advanced security, supporting global payment protocols across cloud environments.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
AG1000 delivers secure transaction routing and transport across virtualized applications and physical environments, ensuring seamless connectivity and protection for modern payment ecosystems.

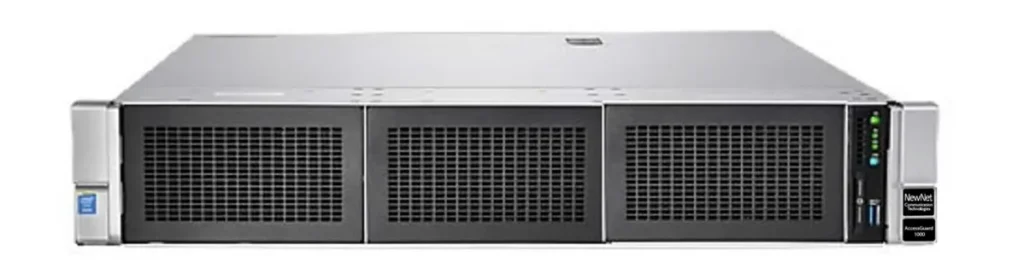

NewNet’s AG1000 consolidates HTTPS & SSL transaction routing, SSL acceleration, and load balancing into a compact, rack-mounted solution—providing exceptional scalability, enhanced reliability, and optimized operational efficiency.
Core Advantages
Billing and Reporting Solution

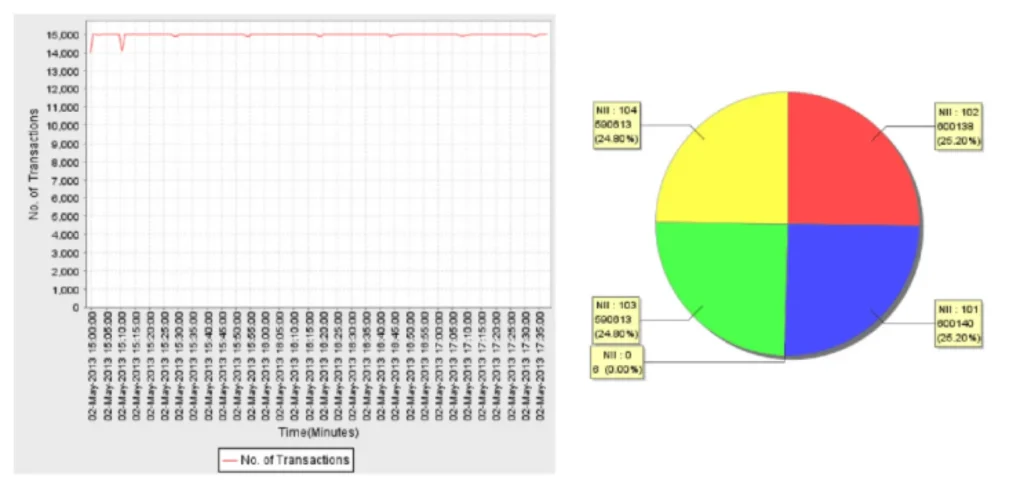

Real-time statistics
Unique data for transaction processing
Flexible Access
Interface options enable easy retrieval, modification, and removal of records for monitoring, billing, maintenance, and backup.
Comprehensive Reporting (Total Control STG)
Total bytes to the modem
Total bytes to & from the host
Host response time
Disconnect reason
Connect speed
Comprehensive Reporting (AccessGuard 1000)
Transaction bytes to & from POS
Transaction bytes to & from host
Call handshake completion time
Call duration (connect to disconnect)
Call termination cause
Scheduling
Automatically exports accounting and network statistics to flat files with options for archival or deletion based on date parameters.
NEWNET
Technical Specifications
AG1000 is built with enterprise-grade components and advanced security features to deliver high performance, reliability, and scalability.
Chassis Specifications
2U Rack Servers, redundant units WxHxD : 442x88x660 mm WxHxD : 17.4×3.5×26 in
System HW
Single Unit
Processor
Dual/single processor with 4 cores each @ 2.4GHz and crypto processor for SSL acceleration
Minimum IP Addresses
Single system IP address required
Network Routing
Supports RIP, OSPF, BGP
Session Capacity Expansion
Expansion via SW licenses (500/1000 sessions)
Layer 7 Routing
VISA I/II, ISO8583, TPDU
Secure Remote Access
Secure Shell (SSH)
Multiple Mode Load Balancing
Round robin, host load based, host response based
Software Licensable
Licensable features for HTTP, IPsec, SSL
Redundancy / Failover
VRRP based active/standby or active/active
HW Assisted Security
TLS 1.2, TLS 1.1, SSL 3.0/TLS 1.0
Load Balancing
Round robin, preference value, traffic load, lowest response delay
Virtualization
Resource and traffic segmentation
DUKPT Encryption
P2PE with FIPS certified key storage
P2PE with FIPS certified key storage
HTTPS + GGSN interface for GPRS authentication
HTTPS De-capsulation
Secure protocol encapsulation for CNP & browser/mobile transactions
Gigabit Ethernet Ports
4 GE ports (SFP, copper & optical)
Additional Product Information

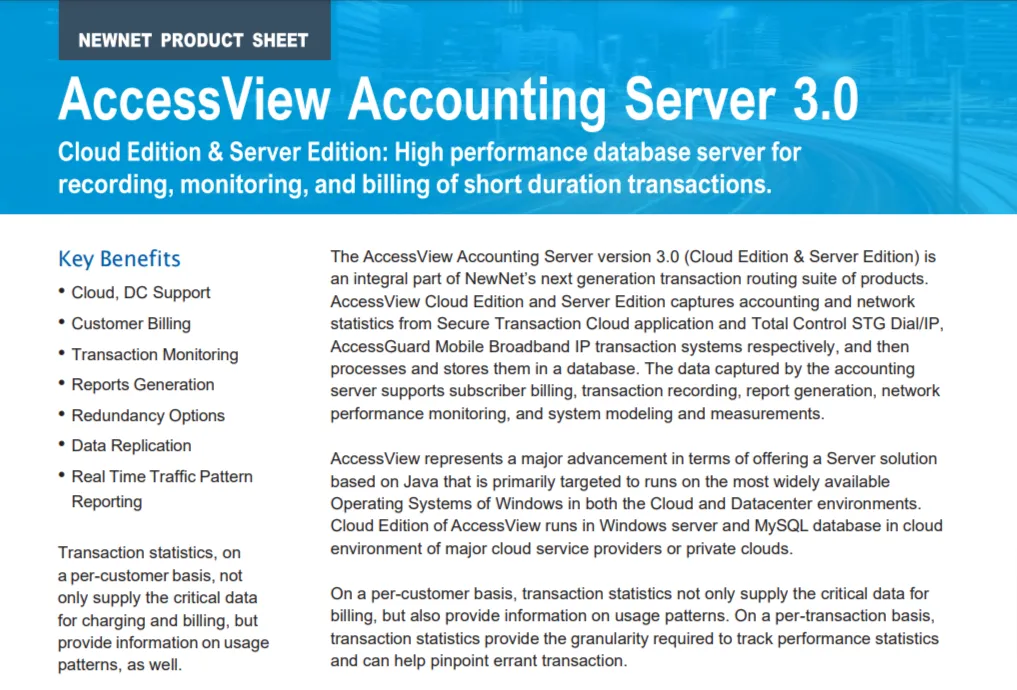

AccessView Accounting Server 3.0 – Data Sheet
AccessView Accounting Server Cloud Edition & Server Edition is a high performance database server for recording, monitoring and billing of short duration transactions.

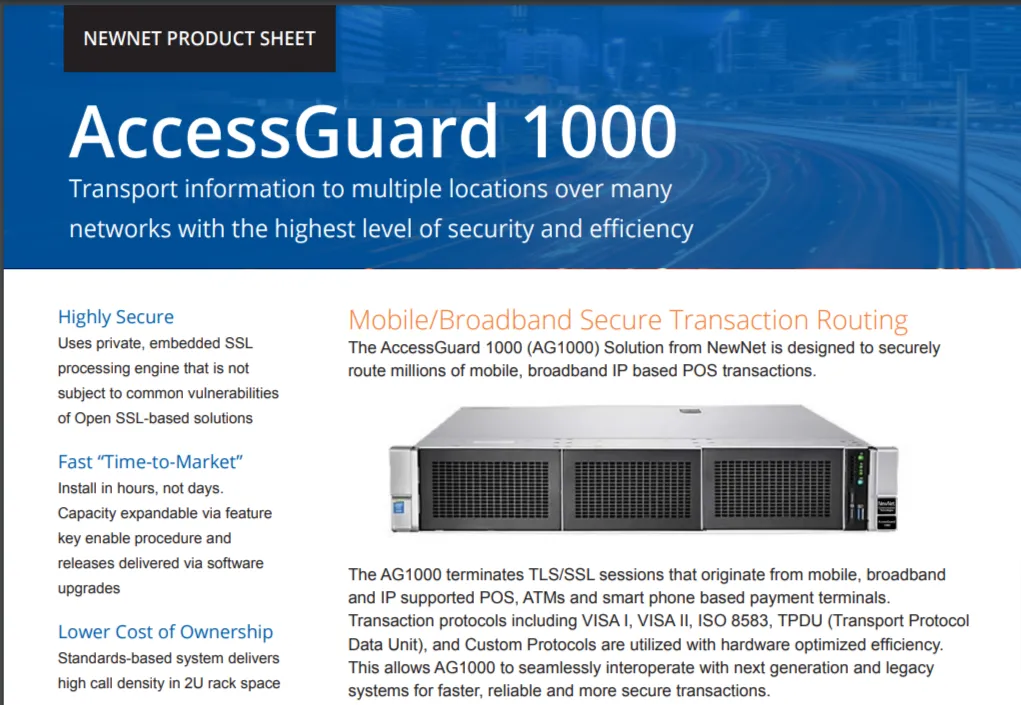

Product Brief
The AG1000 Secure Transaction Solution Application Brief focuses on interconnecting existing legacy and new generation bank host systems to the mobile, broadband internet based Point of Sales (POS) terminals, ATMs, NFC Terminals, smart phone and Tablet based mobile payment terminals etc, for the next generation financial transaction market.

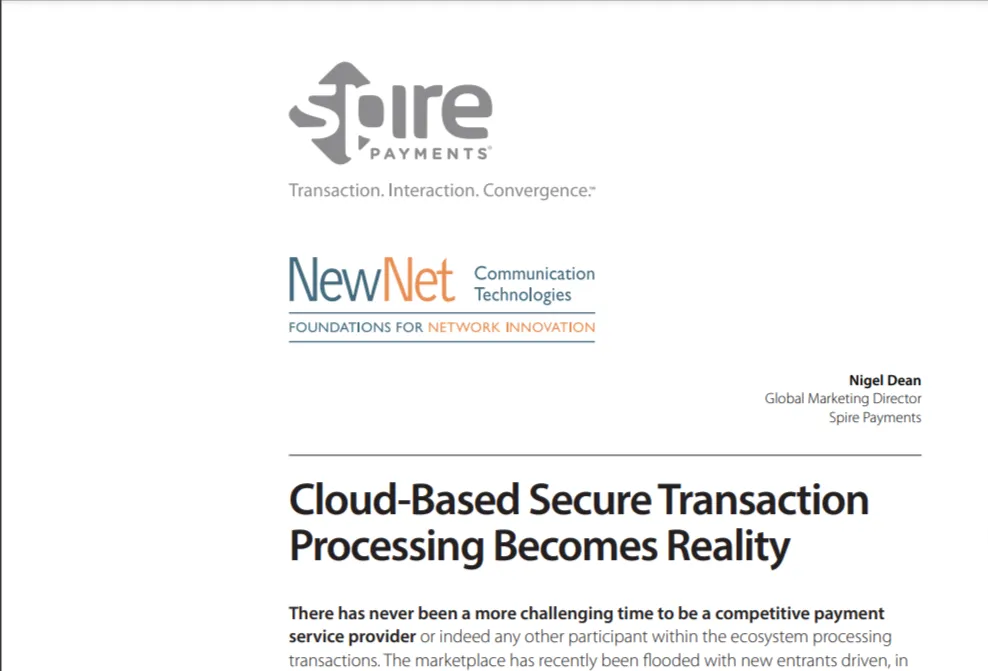

Cloud-Based Secure Transaction Processing Becomes Reality – Case Study
NewNet’s Secure Transaction Cloud (STC) solution in action together with the Spire IP/Wireless POS Terminals offers high security, cost effective, easy to use, flexible and optimized cloud based virtualized payment transaction solution.

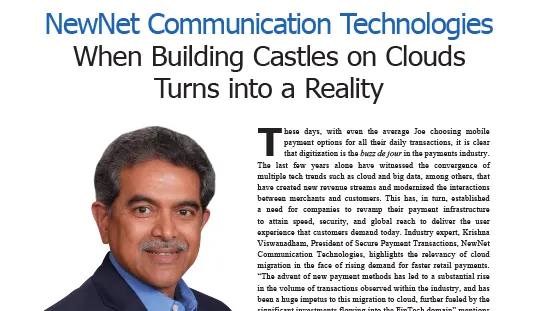

NewNet Secure Payment Transactions’ President, Krishna Viswanadham Featured in CIO Review Magazine Article – Building Castles on Clouds Turns into a Reality
NewNet’s Secure Transactions President, Krishna Viswanadham, was featured in CIO Review’s April 2020 Issue. Krishna discusses how the advent of new payment methods has led to a substantial rise in the volume of transactions observed within the industry, and has been a huge impetus to this migration to cloud.
Explore a free AWS Trial or leverage our solution on Microsoft Azure Marketplace or on Oracle Cloud Infrastructure Marketplace or Google Cloud Marketplace.
