Common Element Manager
A centralized network management solution enabling operators to monitor system health, manage devices, and maintain secure transaction infrastructure efficiently.
System Monitoring
Real-time network visibility
Device Management
Control connected infrastructure
Operational Control
Manage resources efficiently
Centralized Monitoring and Network Operations
PRODUCT OVERVIEW & DEMO
Secure, Scalable Payment Processing
AI-powered STC enables virtualized, high-performance transaction routing with
advanced security, supporting global payment protocols across cloud environments.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
AG1000 delivers secure transaction routing and transport across virtualized applications and physical environments, ensuring seamless connectivity and protection for modern payment ecosystems.
NewNet’s AG1000 consolidates HTTPS & SSL transaction routing, SSL acceleration, and load balancing into a compact, rack-mounted solution—providing exceptional scalability, enhanced reliability, and optimized operational efficiency.
Core Advantages

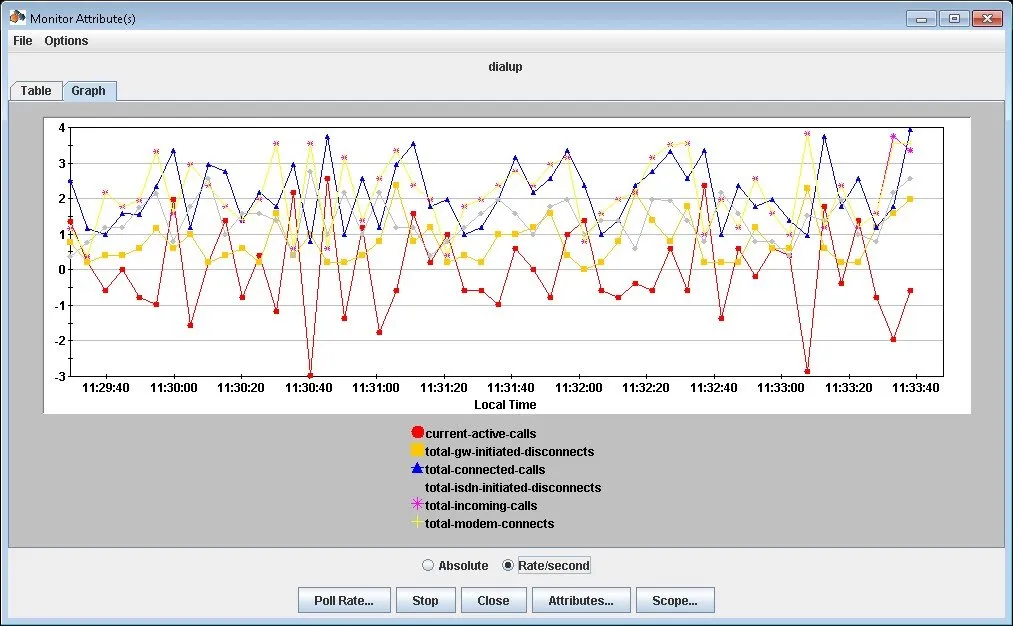

Simple, Intuitive Interface
Easy-to-use graphical interface that enables network operators to view system status and device availability at a glance.

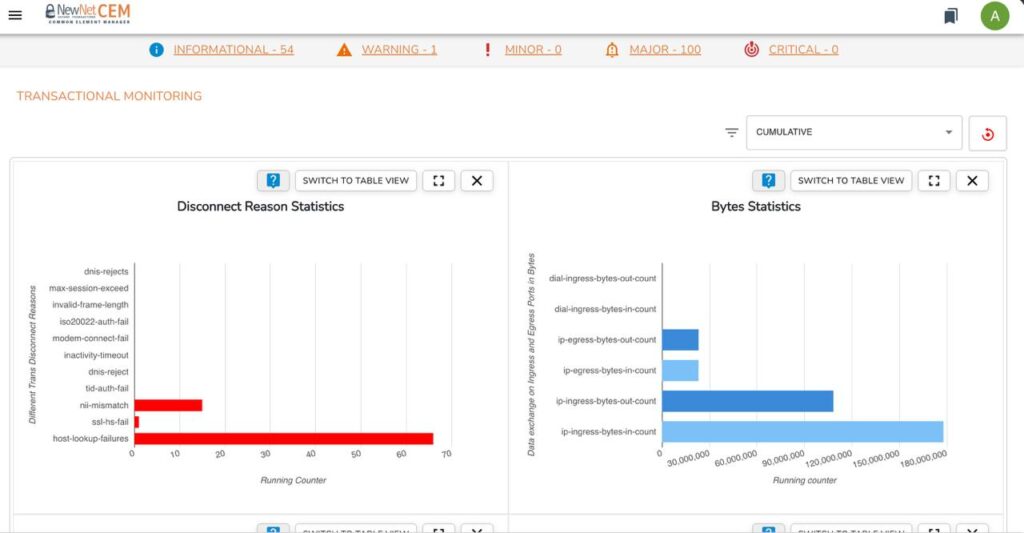

Performance & Capacity Management
On-demand analysis charts
Scheduled performance reports
Over-capacity trend forecasting
Real-time dashboard performance monitoring
CDR / RADIUS Accounting Server
Ad-hoc queries and analysis charts
Traffic count and data utilization reports
Customizable
XML interface and scripting APIs provide flexible options for developing custom device management extensions and clients.
Flexible Client/Server Architecture
Client and server components can be separated, delivering deployment flexibility.
NEWNET
Technical Specifications
AG1000 is built with enterprise-grade components and advanced security features to deliver high performance, reliability, and scalability.
Chassis Specifications
2U Rack Servers, redundant units WxHxD : 442x88x660 mm WxHxD : 17.4×3.5×26 in
System HW
Single Unit
Processor
Dual/single processor with 4 cores each @ 2.4GHz and crypto processor for SSL acceleration
Minimum IP Addresses
Single system IP address required
Network Routing
Supports RIP, OSPF, BGP
Session Capacity Expansion
Expansion via SW licenses (500/1000 sessions)
Layer 7 Routing
VISA I/II, ISO8583, TPDU
Secure Remote Access
Secure Shell (SSH)
Multiple Mode Load Balancing
Round robin, host load based, host response based
Software Licensable
Licensable features for HTTP, IPsec, SSL
Redundancy / Failover
VRRP based active/standby or active/active
HW Assisted Security
TLS 1.2, TLS 1.1, SSL 3.0/TLS 1.0
Load Balancing
Round robin, preference value, traffic load, lowest response delay
Virtualization
Resource and traffic segmentation
DUKPT Encryption
P2PE with FIPS certified key storage
P2PE with FIPS certified key storage
HTTPS + GGSN interface for GPRS authentication
HTTPS De-capsulation
Secure protocol encapsulation for CNP & browser/mobile transactions
Gigabit Ethernet Ports
4 GE ports (SFP, copper & optical)
Additional Product Information
Common Element Manager – Data Sheet
The Common Element Manager System (CEM) features an easy-to-use graphical interface that enables network operators to view system status and device availability at a glance. This Secure Transaction System is based on Java architecture and it inter-operates with service providers’ network management platform of choice, enabling them to leverage an existing equipment investment.
Product Brief
The AG1000 Secure Transaction Solution Application Brief focuses on interconnecting existing legacy and new generation bank host systems to the mobile, broadband internet based Point of Sales (POS) terminals, ATMs, NFC Terminals, smart phone and Tablet based mobile payment terminals etc, for the next generation financial transaction market.
Cloud-Based Secure Transaction Processing Becomes Reality – Case Study
NewNet’s Secure Transaction Cloud (STC) solution in action together with the Spire IP/Wireless POS Terminals offers high security, cost effective, easy to use, flexible and optimized cloud based virtualized payment transaction solution.
NewNet Secure Payment Transactions’ President, Krishna Viswanadham Featured in CIO Review Magazine Article – Building Castles on Clouds Turns into a Reality
NewNet’s Secure Transactions President, Krishna Viswanadham, was featured in CIO Review’s April 2020 Issue. Krishna discusses how the advent of new payment methods has led to a substantial rise in the volume of transactions observed within the industry, and has been a huge impetus to this migration to cloud.
Explore a free AWS Trial or leverage our solution on Microsoft Azure Marketplace or on Oracle Cloud Infrastructure Marketplace or Google Cloud Marketplace.
