SIP Trunking
A modern communication transport solution that replaces legacy dial infrastructures while maintaining seamless connectivity for payment and banking systems.
Cost Reduction
Lower communication expenses
Legacy Compatible
Works with existing systems
Reliable Connectivity
Stable network communication
Optimizing Communication Infrastructure Costs
PRODUCT OVERVIEW & DEMO
Secure, Scalable Payment Processing
AI-powered STC enables virtualized, high-performance transaction routing with
advanced security, supporting global payment protocols across cloud environments.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
AG1000 delivers secure transaction routing and transport across virtualized applications and physical environments, ensuring seamless connectivity and protection for modern payment ecosystems.
NewNet’s AG1000 consolidates HTTPS & SSL transaction routing, SSL acceleration, and load balancing into a compact, rack-mounted solution—providing exceptional scalability, enhanced reliability, and optimized operational efficiency.
Core Advantages
Upgrade Path
No impact to existing installed dial-enabled equipment.
Reduced Expenses
Eliminates dial transport per-transaction fees on ATM and POS devices.
Provisioning & Capacity
Supports flexible continuity with agile, high-capacity provisioning for volume management.
Reliability & Performance
Uncompressed architecture maximizes throughput with redundant systems for resiliency.
Technology Progression Roadmap
Eliminates VoIP gateways and replaces STN with Telco/ISP SIP trunk solutions.
Efficiency
Integrates SIP traffic handling with secure payment transaction routing.
NEWNET
Technical Specifications
AG1000 is built with enterprise-grade components and advanced security features to deliver high performance, reliability, and scalability.
Chassis Specifications
2U Rack Servers, redundant units WxHxD : 442x88x660 mm WxHxD : 17.4×3.5×26 in
System HW
Single Unit
Processor
Dual/single processor with 4 cores each @ 2.4GHz and crypto processor for SSL acceleration
Minimum IP Addresses
Single system IP address required
Network Routing
Supports RIP, OSPF, BGP
Session Capacity Expansion
Expansion via SW licenses (500/1000 sessions)
Layer 7 Routing
VISA I/II, ISO8583, TPDU
Secure Remote Access
Secure Shell (SSH)
Multiple Mode Load Balancing
Round robin, host load based, host response based
Software Licensable
Licensable features for HTTP, IPsec, SSL
Redundancy / Failover
VRRP based active/standby or active/active
HW Assisted Security
TLS 1.2, TLS 1.1, SSL 3.0/TLS 1.0
Load Balancing
Round robin, preference value, traffic load, lowest response delay
Virtualization
Resource and traffic segmentation
DUKPT Encryption
P2PE with FIPS certified key storage
P2PE with FIPS certified key storage
HTTPS + GGSN interface for GPRS authentication
HTTPS De-capsulation
Secure protocol encapsulation for CNP & browser/mobile transactions
Gigabit Ethernet Ports
4 GE ports (SFP, copper & optical)
Additional Product Information

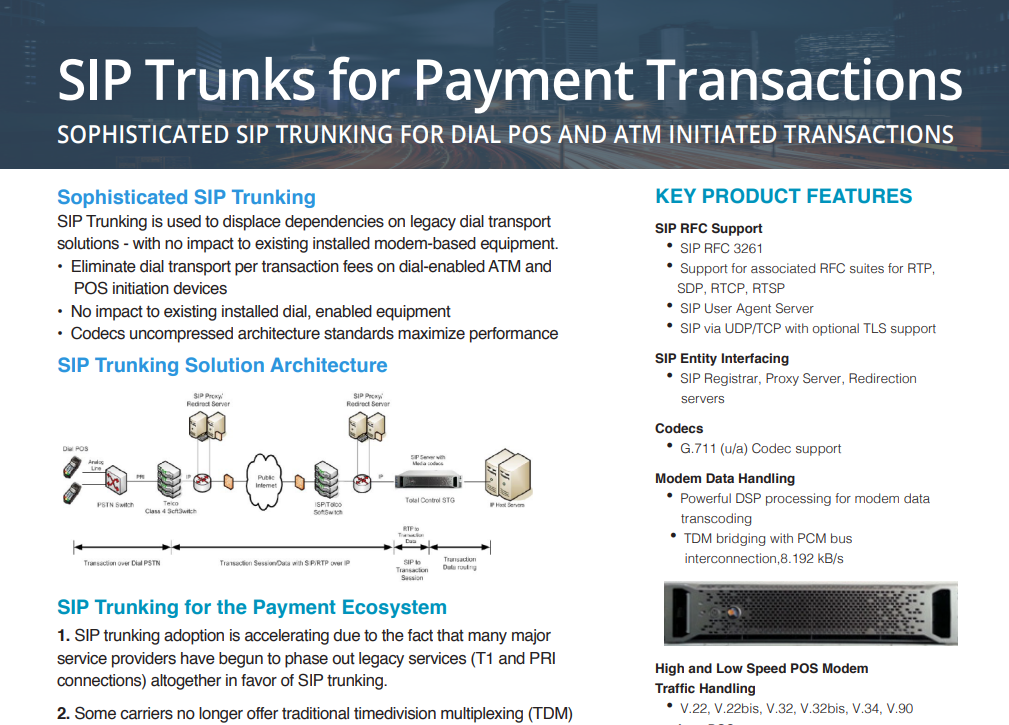

Data Sheet
Sophisticated SIP trunking replaces legacy dial transport dependencies without impacting existing modem-based equipment, eliminating per-transaction dial fees on ATM and POS devices. It ensures seamless compatibility with current dial-enabled systems while leveraging uncompressed codec architecture to maximize performance, throughput, and overall operational efficiency.

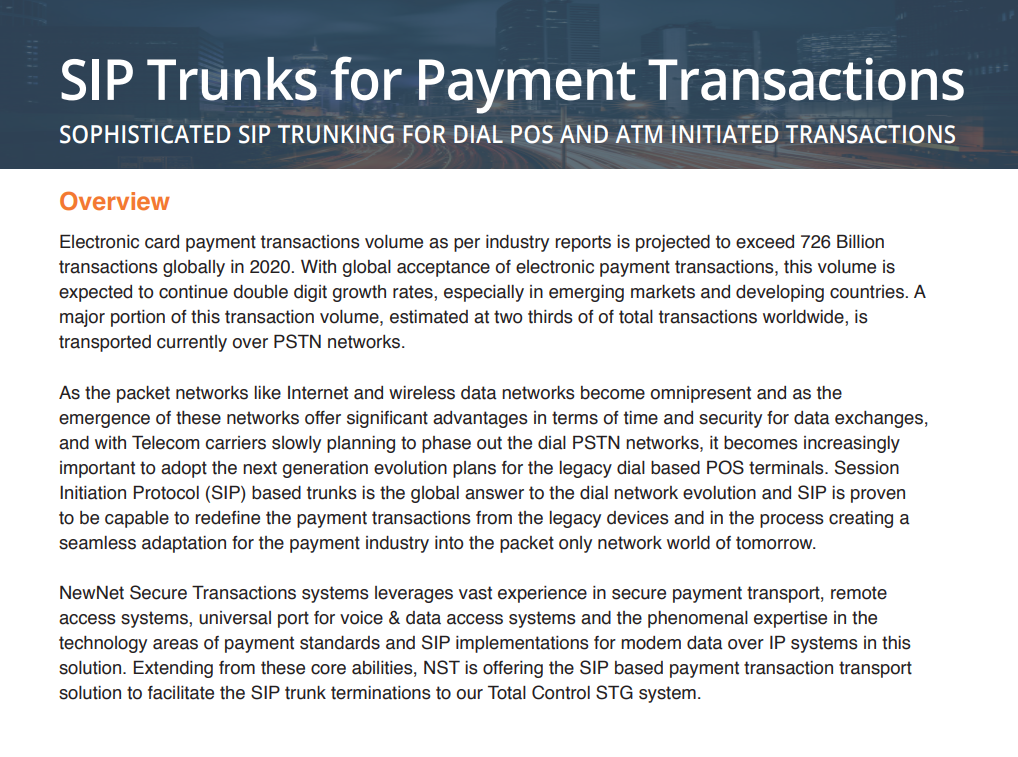

Product Brief
Session Initiation Protocol (SIP) based trunks is the global answer to the dial network evolution and SIP is proven to be capable to redefine the payment transactions from the legacy devices and in the process creating a seamless adaptation for the payment industry into the packet only network world of tomorrow.
Cloud-Based Secure Transaction Processing Becomes Reality – Case Study
NewNet’s Secure Transaction Cloud (STC) solution in action together with the Spire IP/Wireless POS Terminals offers high security, cost effective, easy to use, flexible and optimized cloud based virtualized payment transaction solution.
NewNet Secure Payment Transactions’ President, Krishna Viswanadham Featured in CIO Review Magazine Article – Building Castles on Clouds Turns into a Reality
NewNet’s Secure Transactions President, Krishna Viswanadham, was featured in CIO Review’s April 2020 Issue. Krishna discusses how the advent of new payment methods has led to a substantial rise in the volume of transactions observed within the industry, and has been a huge impetus to this migration to cloud.
Explore a free AWS Trial or leverage our solution on Microsoft Azure Marketplace or on Oracle Cloud Infrastructure Marketplace or Google Cloud Marketplace.
