Total Control STG – Secure Transaction Routing & Transport
Total Control® STG (Secure Transaction Gateway) is a secure transaction routing and transport product that consolidates protocol handling, routing, high speed downloads, multi-protocol support and network routing within a compact rack-mounted server system.
The AG1000 offers secure transaction routing and transport via virtualized applications or physical environments NewNet’s products consolidate HTTPS & SSL transaction routing, SSL acceleration, and load balancing within a compact rack mounted footprint. Exceptional scalability and reliability are achieved while optimizing efficiency.
Key Benefits
- Relevant Technology Progression: Secure transaction transport and routing with P2PE/Tokenization functionality in a server-based solution provides a seamless roadmap to virtualized applications.
- Minimize Expenses: Reduce or eliminate monthly support and license fees with multi-product support in a single server.
- Reliability & Redundancy: Total Control STG is designed to ensure no single point of failure for maximum uptime and higher availability. The system provides fast, reliable connectivity using future forward communications technology.
- Increased Efficiency: The STG acts as an intermediary, reducing network congestion and time spent by the host in handling responses, allowing the host to handle more volume.
- Improved Throughput: Fast-train protocol supports significantly reduced transaction processing times.
- Integration & Customization: Extensive POC and integration support delivered by tenured Professional Services and Systems Engineers.
- Compliance & Security: Architected in accordance with PCI DSS industry guidelines to align with payment ecosystem best practices.
Contact [email protected] for additional information.
Technical Specifications
| Total Control STG | |
|---|---|

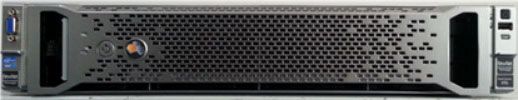

| Chassis Specifications | 2U Rack Servers, redundant units WxHxD : 445x86x749 mm WxHxD : 17.5×3.4×29.5 in |
| Port Density | 8 E1s or T1s per Modem card per 1U Space |
| Capacity Expansion | Expandable on need basis by adding extra 2U Rack servers for 8 E1-16 E1 modem cards |
| Transaction Protocols (End-User) | Visa I/II, ISO 8583 (sync), TPDU routing, SDLC, HDLC, Asynchronous, Transparent, full or partial protocol emulation; custom variants for Terminal authentication, intelligent routing |
| Modem Support | V.90,V.34,V.32, V.32bis,V.22,V.21,bell 103,Bell 212, ISDN V110,120, Async, SDLC |
| Ingress Protocol | TLS/IP, Mobile/IP, Web/HTTPS, Dial-Up, PPP, Async/Sync. |
| Egress Ports (WAN) | IP, PPP, X.25 |
| Radius Call Data Records for Reporting & Analytics | CDRs generated per transaction |
| Multiple mode Load balancing | Round robin, host load based, host response based |
| Time Synchronization | NTP |
| Processor | Dual processor with 4 cores, each @ 2.4GHz |
| Minimum IP Addresses Required | Single system IP address required |
| Network Routing | RIP, OSPF, BGP |
| Session Capacity Expansion | Expansion using SW licenses on same HW with no additional HW in units of E1/T1; additional Rack units for further expansion |
| Secure Remote Access | Secure Shell (SSH) |
| Gigabit Ethernet Traffic Ports (SFP) Copper & Optical | 4 GE ports |
| Multiple mode Load balancing | Round robin, host load based, host response based |
| Software licensable | Licensable SW features for HTTP transactions, IPSec, SSL |
| Redundancy/Failover | VRRP Based active/standby or active/active model |
| Secure Internet & Future Mobile Transactions Readiness | Add-on cryptographic processor for support of additional HW security with 3DES, AES 256 |
Additional Resources
Product Brief
NewNet’s Total Control Secure Transaction Gateway version 5.0e (STGe) enhanced, integrated Dial and IP Secure Transaction system is the path breaking, newer generation, market leading solution for carrier class transaction network solution for acquirers, processors, carriers, nancial institutions, payment service providers, network service providers etc.
This specialized software suite can enable fast transaction transport of credit card authorizations, debit card fund transfers, health bene t authorizations, electronic bene ts transfers, and other communications involving single-session transfer of small and large amounts of data. The Total Control STG system is a high density and high session capacity secure transaction transport system designed to run on industry standard, highly reliable, high performance 2U rack mount hardware.
